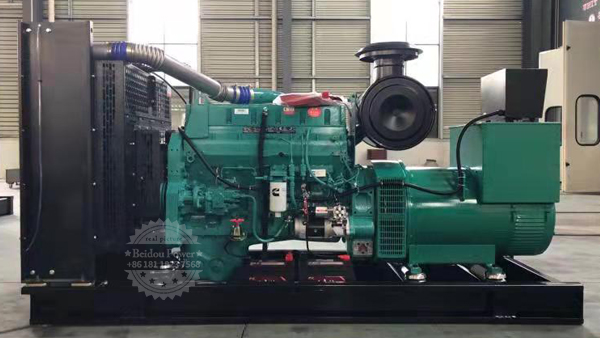

What are the product configurations of Cummins diesel generator sets? Here is Chongqing Cummins to share with you:
1. Basic design features:
Cylinder block design is sturdy and durable, with low vibration and low noise; in-line 6-cylinder four-stroke, stable operation and high efficiency; replacement of wet cylinder liner, long life and easy maintenance; two cylinders and one head, 4 valves per cylinder, sufficient air intake, high performance Excellent; forced water cooling, small heat radiation.
2. Fuel system:
Cummins’ patented PT fuel system has a unique overspeed protection device; low-pressure fuel delivery pipe, fewer pipelines, low failure rate, high reliability; high-pressure injection, full combustion. Equipped with fuel oil supply and oil return check valve, safe and reliable use.
3. Intake system:
Equipped with dry air filter and air resistance indicator, using holset exhaust gas turbocharger, sufficient intake air and guaranteed performance.
Fourth, the exhaust system:
The use of pulse dry exhaust pipe can effectively utilize the exhaust energy and give full play to the performance of the engine; the exhaust elbow and exhaust bellows with a diameter of 127mm are installed for easy connection.
5. Lubrication system:
60gal variable flow oil pump with main oil channel signal pipe, which can adjust the pump oil volume according to the main oil channel oil pressure to optimize the oil volume entering the engine; low oil pressure (241-345kpa), these measures can reduce the loss of pump oil power , improve the power and improve the economy of the engine.
6. Cooling system:
The engine adopts gear centrifugal water pump for forced water cooling, large flow water channel design, good cooling effect, which can effectively reduce heat radiation and noise. Spin-on water filters to prevent rust and corrosion, control acidity and remove impurities
7. Power output:
A crankshaft pulley with double-slot PTO can be installed in front of the shock absorber, and a multi-slot accessory drive pulley is installed at the front end of the engine, which can be equipped with various front-end PTO devices. Flywheel and flywheel housing: sae 14″ flywheel sae1# flywheel housing Engine bracket: The engine is equipped with a total of three brackets front and rear.
The above is the product configuration of Cummins diesel generator set shared for you, I hope it can help you.
